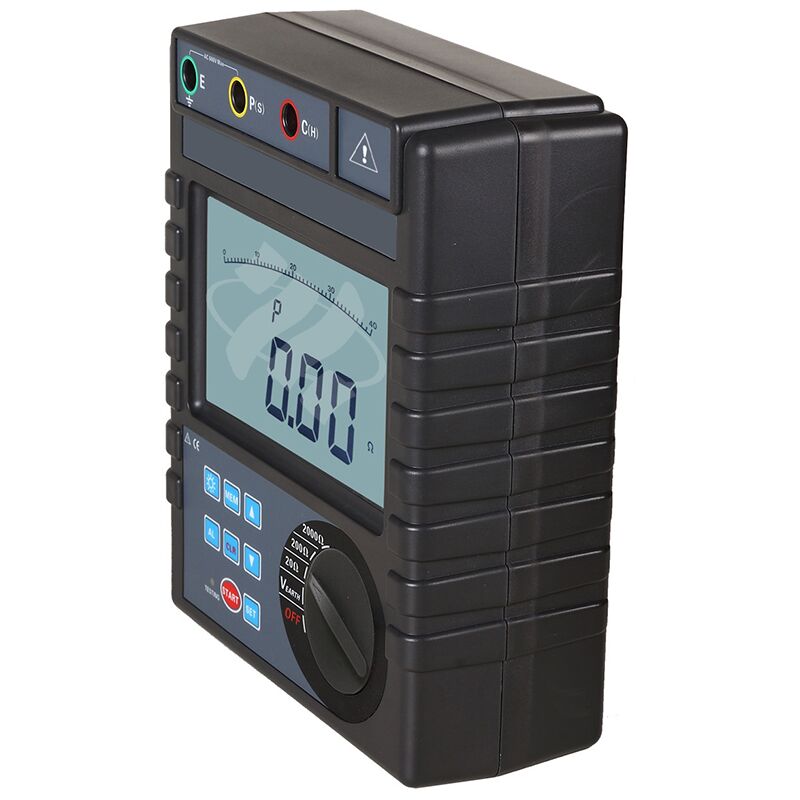

Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705

Name: Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDJ705
Price: 440.00 USD
Availability: InStock

Détails de produit:

Lieu d'origine:	Xi'an Shaanxi Chine
Nom de marque:	XZH TEST
Certification:	ISO CE
Numéro de modèle:	XHDJ705

Les informations détaillées

Lieu d'origine:

Xi'an Shaanxi Chine

Nom de marque:

XZH TEST

Certification:

ISO CE

Numéro de modèle:

XHDJ705

Fonctions de base:

Capable de mesurer la résistance de terre, la tension de terre et la résistance de faible valeur pou

Configuration de l'alimentation:

Alimenté par DC 9 V (6 piles R14S de 1,5 V), avec une très longue autonomie en veille continue de 30

Schémas de mesure:

Prend en charge la mesure à 3 fils, la mesure à 2 fils et affiche la valeur moyenne, la valeur maxim

Principe de test de résistance à la terre:

Adopte la méthode de pôle variable à courant nominal, avec un courant de mesure maximum de 3 mA et u

Mode de test de tension de terre:

Adopte le mode de rectification de la valeur moyenne ; équipé d'un écran LCD surdimensionné à 4

Plage de résistance de terre et précision:

Plage de mesure 0,01 Ω ~ 2 000 Ω, précision de mesure ± 1 % de la lecture ± 3 chiffres, rapport de r

Mettre en évidence:

High Light

Mettre en évidence:

Liquid Crystal Display Ground Resistance Tester

Portable Earth Resistance Tester

High Precision Ground Tester

Trading Information

Quantité de commande min:

1SET

Prix:

Négociable

Détails d'emballage:

emballage en bois

Délai de livraison:

5-8 jours ouvrables

Conditions de paiement:

T/T

Capacité d'approvisionnement:

3000unité/an

Description de produit

Portable Ground Resistance Tester with Liquid Crystal Display for High Precision Earth Resistance Measurement

Product Overview

The XHDJ705 Digital Earth Resistance Tester is a professional measuring instrument independently designed and manufactured for field-based earth resistance detection. It boasts wide applicability and can be used to measure the earth resistance of various facilities including power grids, meteorological equipment, oilfield installations, construction projects, lightning protection systems and industrial electrical devices.

Performance Features

Engineered with advanced digital circuit and microprocessor control technologies, this instrument supports both 3-wire and 2-wire standard measurement methods for earth resistance. It features a proprietary line resistance calibration function that eliminates measurement errors caused by wire resistance, coupled with exceptional anti-electromagnetic interference performance and strong environmental adaptability to harsh working conditions. These core advantages ensure the instrument maintains high measurement accuracy, outstanding stability and reliable operation throughout long-term service.

Technical Parameters

Core Functions	Capable of earth resistance measurement, earth voltage measurement and low-value resistance measurement to meet diversified testing demands
Power Supply Configuration	Powered by DC 9V (6 pieces of 1.5V R14S batteries), with a super-long continuous standby time of 300 hours to support long-term field work
Measurement Schemes	Supports 3-wire measurement, 2-wire measurement, and displays average value, maximum value and minimum value of test results
Earth Resistance Testing Principle	Adopts rated current variable pole method, with maximum measurement current of 3mA and working frequency of 820Hz
Earth Voltage Testing Mode	Measuring range 0.01Ω～2000Ω, measurement accuracy ±1% reading ±3 digits, resolution ratio 0.01Ω
Earth Resistance Range & Accuracy	Measuring range AC 0～600V, measurement accuracy ±1% reading ±3 digits, resolution ratio 1V
Earth Voltage Range & Accuracy	Earth voltage measurement: 3 times per second; Earth resistance measurement: 5 seconds per measurement
Measurement Efficiency	Equipped with RS232 interface to upload stored data to computer for archiving and printing; supports 400 groups of data storage, and the flashing "FULL" icon prompts that the memory is full
Data Communication & Storage	Operating temperature range -10℃～40℃, relative humidity below 80%RH (no condensation)
Operating Environment Requirements

1. Robust Brand Strength:** Leveraging the extensive scientific research resources of universities in Xi'an, Xi'an Xuzhihui Electromechanical has dedicated years to deep specialization in the field of power testing equipment. Integrating R&D, manufacturing, sales, and service, our products have undergone rigorous market scrutiny and enjoy a reputation for reliability that is truly worthy of trust.
2. Industry-Leading Technology:** The XHDJ705 incorporates advanced digital circuitry and sophisticated anti-interference technology. Compared to traditional grounding testers, it offers faster testing speeds, greater data accuracy, and superior stability, perfectly meeting the intelligent and automated demands of modern power testing applications.

3. Exceptional Cost-Effectiveness:** Operating on a direct-from-manufacturer sales model eliminates intermediary channels, allowing us to offer more accessible pricing without compromising on quality. By striking an optimal balance between product performance and procurement costs, it stands as the preferred choice for enterprises and testing institutions seeking to reduce expenses and enhance operational efficiency.

4. Comprehensive Service Assurance:** From product selection and operational training to after-sales maintenance and technical upgrades, Xi'an Xuzhihui provides a seamless, one-stop service experience—ensuring that our customers can purchase with confidence and operate with complete peace of mind.
