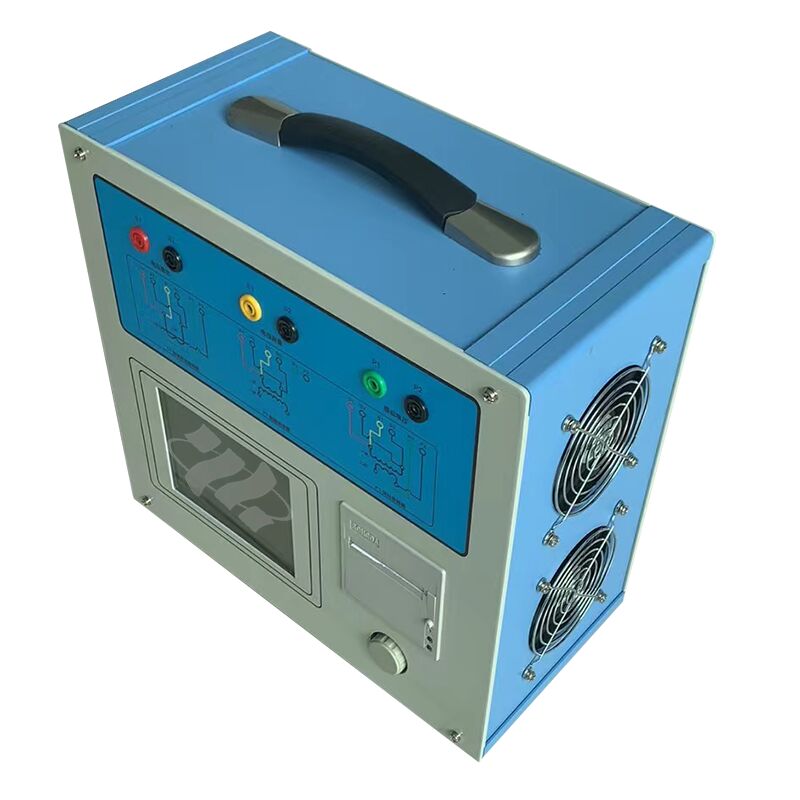

Engineered for comprehensive transformer testing, the XHTX206 Transformer Comprehensive Characteristic Tester delivers precise measurements for a broad spectrum of CTs, such as protection - class, metering - class, and TP - class transformers. It conducts thorough assessments of excitation (volt - ampere) characteristics, transformation ratio, polarity, secondary winding resistance, secondary load, ratio error, and angle error. Beyond CT testing, this high - performance instrument is also compatible with the testing requirements of electromagnetic units of various PTs, including excitation characteristics, transformation ratio, polarity, secondary winding resistance, and ratio error tests.
★ Leveraging advanced frequency conversion testing methodology, the tester accurately plots characteristic curves and error curves, with an exceptional inflection point voltage capacity of 60kV to meet high - demand testing scenarios.
★ Streamlines testing workflows by automatically generating inflection point voltage/current values, error curves, and a complete set of test parameters, eliminating manual calculation errors.
★ Features intuitive dynamic displays for both parameter configuration and wiring diagrams, guiding operators step - by - step to ensure correct and efficient setup.
★ Incorporates a rotary photoelectric mouse for smooth, straightforward operation, significantly reducing the learning curve and boosting testing efficiency.
Technical Parameters
☆ Output: 0–180Vrms, 12Arms, 36A (peak) ±0.2%
☆ Measurement: Transformation
Ratio: 0–2000 ±0.1%; 2000–5000 ±0.2%; 5000–35000 ±0.5%
Resistance: 0–600Ω ±(0.5%R+2mΩ)
Phase: Resolution 0.5min ±5min
Load: 0–1000VA ±(0.5%R+0.02VA)
☆ Power Supply: AC220V±10%, 50Hz
