Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator

Détails de produit:

Nom de marque:	XZH Test

Les informations détaillées

Nom de marque:

XZH Test

Mettre en évidence:

High Light

Mettre en évidence:

digital cable fault locator

electric power cable tester

intelligent cable fault pinpointer

Trading Information

Quantité de commande min:

1 unité

Prix:

1750USD

Détails d'emballage:

Boîte en bois

Délai de livraison:

5-8 jours de travail

Conditions de paiement:

T / t

Capacité d'approvisionnement:

2000unit / an

Description de produit

Basic Info.

Model NO.

XHDD503D

Transport Package

Wooden Case

Specification

479X387X210mm

Trademark

XZH TEST

Origin

China Xi′an

HS Code

9031809090

Production Capacity

2000pieces /Year

Product Description

Product Introduction

The XHDD503D underground cable fault pinpointer uses the acousto-magnetic synchronization method to determine the location of the cable fault point. The electronic flashover is generated by the impulse discharge generator, picked up and amplified by the corresponding probe, and judged by auditory and visual sense to determine the precise location of the fault point, complete the precise positioning of the cable fault point within the range of the cable fault point, it integrates acousto-magnetic time difference positioning technology, noise reduction technology, path-assisted testing and other technologies, and provides multiple test modes and rich and diverse prompt information to efficiently and accurately complete cable fault location.

This pointing instrument is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of various materials of different cross-sections and different media, such as power cables, high-frequency coaxial cables, street lamp cables, and buried wires, as well as high-resistance leakage and high-resistance flashover fault.

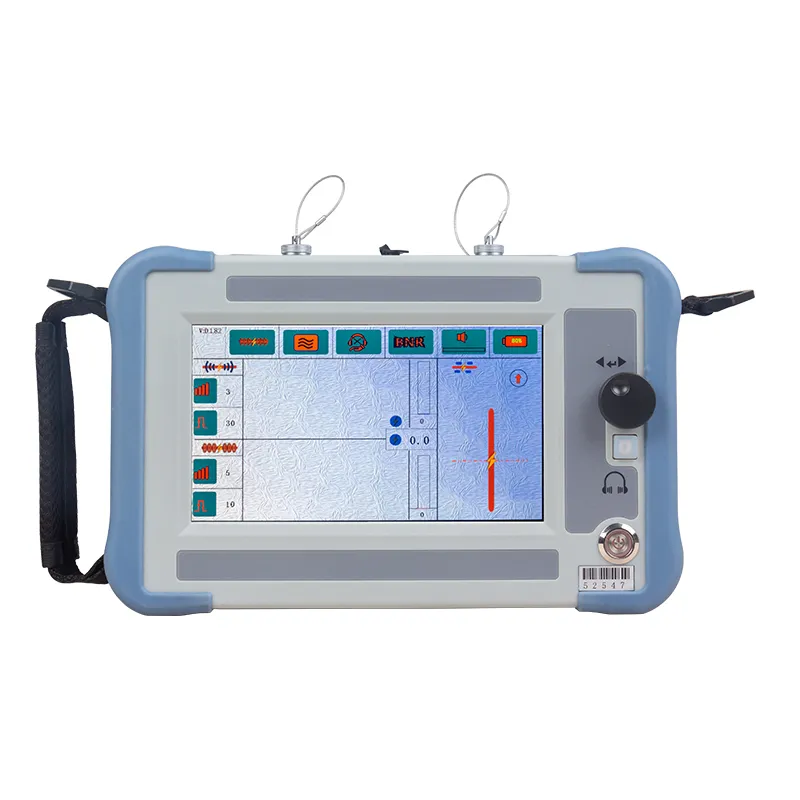

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 1

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 1

Main Function & Features

(1)Acousto-magnetic synchronous positioning technology is used to automatically calculate the acoustic-magnetic time difference, reducing the dependence on sound monitoring.
(2)The background noise reduction technology effectively filters out environmental interference noise and highlights the discharge sound at the fault location.
(3)Combining the traditional acoustic measurement method and the advanced acoustic magnetic method, the operator freely chooses according to the usage habits.
(4)The gain value and trigger value of the acoustic signal and magnetic signal can be adjusted manually, which is more convenient to fix the point.
(5)It has the function of path auxiliary indication to avoid offsetting the path when the point is fixed.
(6)Adjustable parameters, select appropriate filter parameters, and suppress environmental noise.
(7)7-inch touch highlight LCD to ensure visibility in the sun.
(8)Built-in high-capacity lithium-ion battery power supply, with fast charger.
(9)Small and portable, light weight.

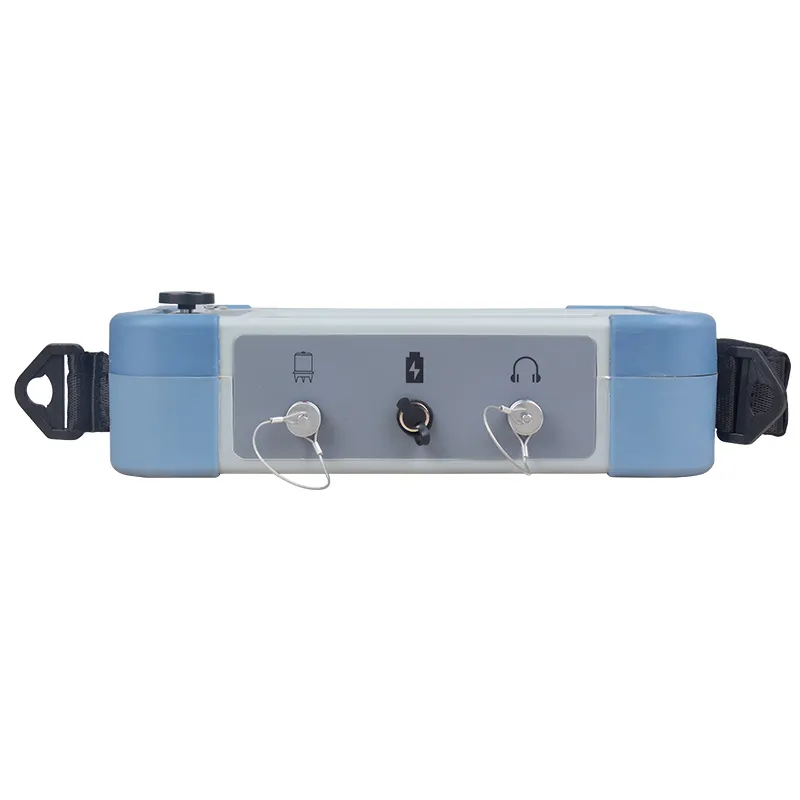

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 2

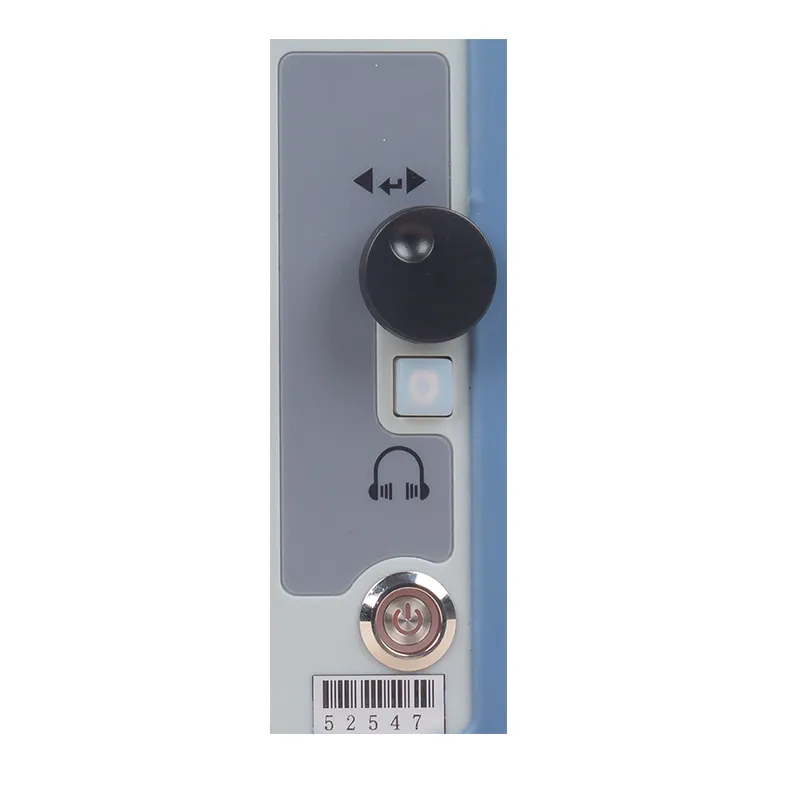

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 3

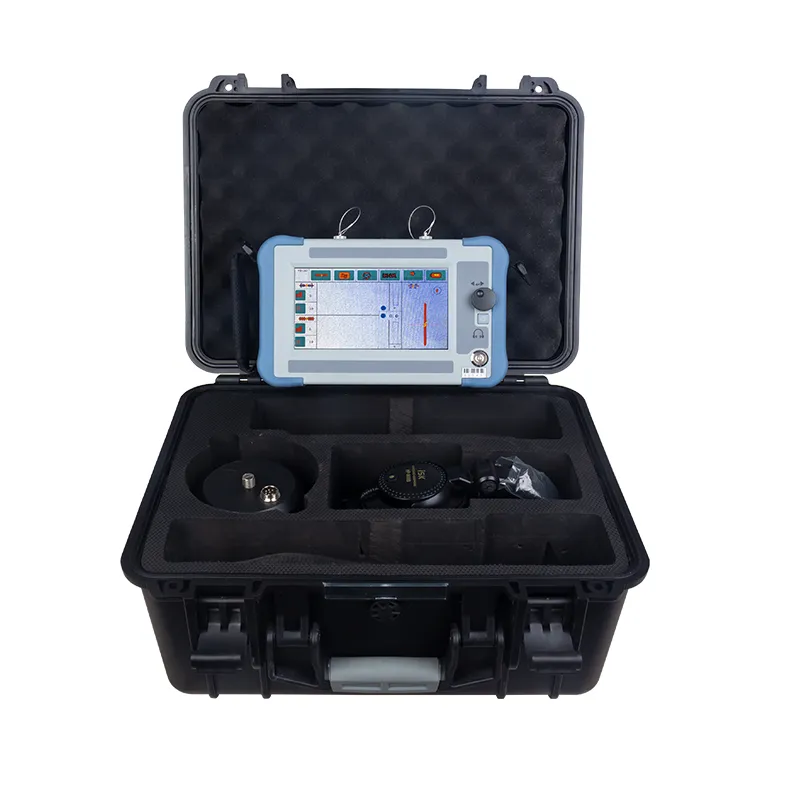

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 4

Technical data

Acousto-magnetic synchronization	(1)Sound channel Bandwidth All pass:100Hz-1500Hz Low pass:100Hz-400Hz Highpass:150Hz-1500Hz Bandpass:200Hz-600Hz Signal gain:Adjustable from 1 to 7 gears Fixed-point accuracy:0.1m (2)Magnetic field channel Signal gain:Adjustable from 1 to 7 gears
BNR	Acousto-magnetic synchronization background noise reduction mode
	The sound signal strength bar graph indicates, and the sound trigger threshold is adjustable.
Acousto-magnetic time difference positioning mode	waveform display, acousto-magnetic time difference display.
Path auxiliary test:	The direction of the path can be indicated by the icon on the left and right of the cable.
Power supply:	Battery: Built-in lithium-ion battery pack, voltage 8.4V, capacity 4.4Ah Use time: continuous use time> 8 hours; Charger: input AC220V±10%, 50Hz; nominal output 8.4V, 1A Charging time: <6 hours.
Display mode:	7-inch color LCD, 1024*600 resolution, with touch function.
Operating environment temperature	-25ºC-40ºC, humidity 5-90%RH, altitude <4500m.

Welcome you contact us for more information

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 5

Our team

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 6

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 7

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 8

Xzh Electric Power Cable Fault Pinpointer Digital Intelligent Cable Fault Locator 9
